Name: Pulsar PTX3076R Gen 2
SKU: 8270879949059
Availability: InStock

Description

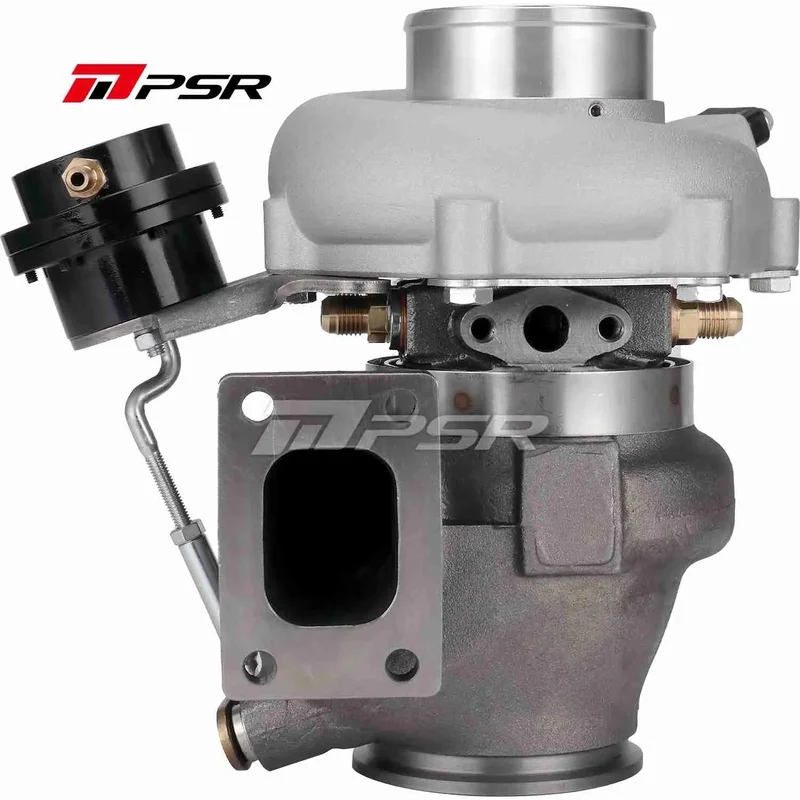

Pulsar PTX3076R Gen 2

Please note, T51R housing option requires an extra 7 days handling time
Recommended displacement 1.8 to 3.0 litres with power outputs up to 700hp possible.
Dual Ceramic Ball Bearing System
9 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
Inconel 713c 10 Blade Turbine Wheel
Gen2 Cover Integrated with the Speed Sensor Port
0.83 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet turbine housing In option
V-Band Flange kit(s) for the exhaust housing included
Max Air Flow rate: 65 lb/min, rated @ 750 FWHP
Supplied with manifold to turbine gasket and 5 bolt gasket (where applicable). Oil feed restrictor supplied (where applicable).
Wastegate actuator supplied on internally gated units with compressor housing.

SPEC

Compressor Wheel: 58*76mm
Turbine Wheel: 60*55mm
Compressor Inlet: 4″ Hose
Compressor Outlet: 2″ Hose
Turbine Inlet: T3, T4 or 2″ V-Band
Turbine Outlet: 3″ V-Band(3.55″OD)
Oil Feed: -4 AN Oil Restrictor connection.
Oil Drain: Std T3 Flange
Water In/Outlet: M14*1.5

It’s strongly recommended to run water cooling to aid reliability.

Additional information

mycustom

Turbine Housing#T3 .63AR V-band>T3 .82AR V-band>T3 .106AR V-band>T4 Twin Scroll .85 V-band>Dual V-band .83>Dual V-band 1.01>Stainless Steel Dual V-band .64>Stainless Steel Dual V-band .64 T3 Adaptor>Stainless Steel Dual V-band .64 T25 Adaptor>Stainless Steel Dual V-band .82>Stainless Steel Dual V-band .82 T3 Adaptor>Stainless Steel Dual V-band .82 T25 Adaptor>Stainless Steel Dual V-band 1.03>Stainless Steel Dual V-band 1.03 T3 Adaptor>Stainless Steel Dual V-band 1.03 T25 Adaptor~Exhaust Housing#Standard>T51R Mod
