Description

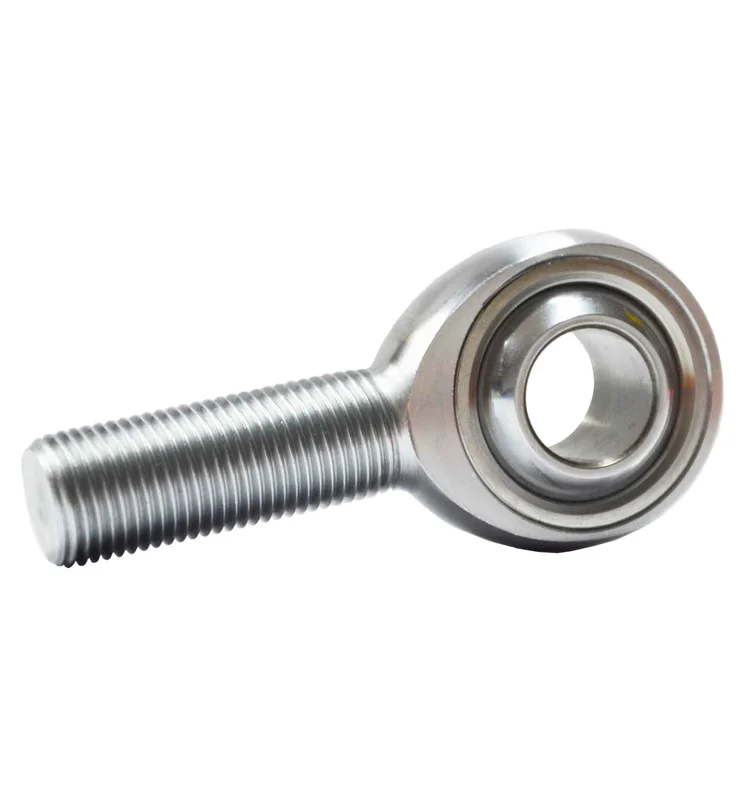

McGill AG- Aircraft Grade Alloy Steel Teflon® (PTFE) Lined Series range features a 3-Piece construction.
BALL: 52100 Bearing Steel ~ Heat Treated ~ Hard Chrome Plated ~ Precision Ground
RACE: Low Carbon Steel ~ Corrosion & Wear Resistant ~ PTFE Lined
BODY: Chrome Molybdenum ~ Heat treated ~ Corrosion Resistant
EXCLUSIVE FEATURES: Thicker Body for Increased Tensile Strength ~ High Radial Load Capability
Bore: 12mm
Width of Ball: 16mm
Width of Housing: 12mm
End of thead to Eye of Bore: 50mm
Diameter of Head: 30mm
Ball Dia Ref: 22.23mm
Thread Length: 33mm
Misalign Angle: 17 deg
Ult. Radial Static Load: 44,490Newtons
Approx. Bearing weight: 78g
AG Range – Ideal for Motorsport and Marine Applications.
To complement this item, we have a range of other products available in our online store. We supply suitable all components in a range of imperial and metric sizes.
