Description
Philosophy/Design:

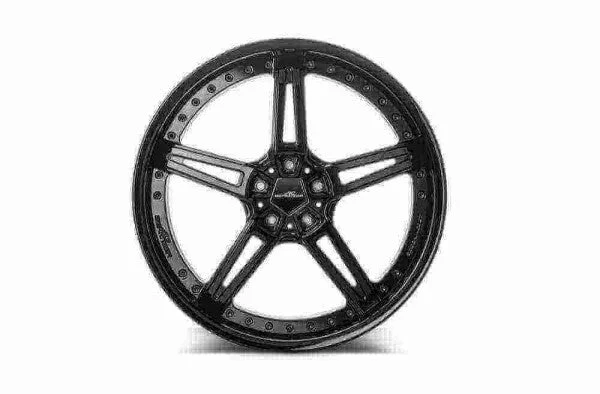

A generational change for AC Schnitzer rims. When light-alloy wheels consist of more than one component, they are referred to as multi-piece light-alloy wheels. Three-piece AC Schnitzer light-alloy wheels consist of two rim halves and the rim center. Not only the name, but also the design – both indicate the generational change in the rim segment at AC Schnitzer. While the AC1 rims are designed differently, they follow in the footsteps of their predecessors in one respect: they too are intended to become design classics. With the AC1 rims, AC Schnitzer has reinterpreted the classic double spoke. The result is a sporty hybrid look. Towards the rim flange, the sophisticated design creates the tips of triangles, which become wider towards the rim center and are replaced by five trapezoids. These lead the eye directly to the only classic element of the AC1 rim: the pentagonal hub cap with AC Schnitzer lettering. Despite this multitude of stylistic elements, the design appears tidy and masculine thanks to its very straight lines. All elements combine to give the AC1 wheel solidity and grandeur. The two-tone finish creates a striking interplay, especially when moving. – Three-piece design with visible bolts – High load capacity due to the special construction – Outer rim: forged, milled, rolled, and clear-coated – Rim center: forged and milled – Inner rim: milled, rolled, and anodized aluminum block – Weight-optimized racing rims with integrated original AC Schnitzer lettering – Weight reduction through forging technology compared to conventional cast wheels – Reduction of unsprung mass and centrifugal forces on the car – Increased driving dynamics – Open, 5-spoke design in black, allowing a clear view of the brakes – High-quality clear coat protects the rim against corrosion, guaranteeing a long service life – Technical evolution of the AC1 rims
material
Rim star: Forged block made of high-strength aluminum Outer rim: High-strength aluminum Inner rim: High-strength aluminum
production
Steps on the way to perfection – Forged rim star – Outer rim deep-drawn, CNC-machined, high-gloss polished and clear coated – Inner rim deep-drawn, CNC-machined, anodized The individual components are connected to one another using high-strength titanium screws.
Surface Black – Outer bed / Surface
In this process, the wheel is first primed, then completely painted. A two-layer clear coat is then applied, consisting of a polyester primer and a matte acrylic clear coat.
Inner bed / Surface The inner bed is anodized
Test procedures / safety
After their design, the first sample rims are manufactured under real production conditions. These must undergo a multitude of tests. Among other things, their strength is tested. The bending test simulates the “rim lifespan.” Every AC Schnitzer rim must survive this lifespan unscathed in order to be produced and sold. Vehicle-specific tests, including test installations with clearance measurements and driving tests on public roads and racetracks, follow. Only after these procedures do our rims receive their homologation, i.e., approval for use on public roads. Wheels are safety-relevant components. Therefore, they are inspected and tested with the utmost care. This begins with initial chemical material tests and ends with tough endurance tests on testing machines: – §30 StVZO wheel guidelines – ECE R124 – Bending tests – Impact test 90° – Rolling tests Scope of delivery: AC1 multi-part black rim Specific hub cap Quality tag Report Optional vehicle and rim-specific assembly and fastening material Certificate of authenticity – 2-year manufacturer’s warranty
Uniqueness of the AC1 racing forged wheels:
– Engineered in Germany
– Weight optimized
– Developed exclusively for BMW vehicles
– Specially developed for vehicles with high axle and wheel loads
– With exclusive AC Schnitzer and “Forged” logos
– Compatible with standard RDC system
– Also available as a complete wheel
– 2-year warranty
– Production monitored according to ISO standards
– Black
– KDS mount for wheel alignment according to BMW specifications is available
– Spacers / fitting package for the best possible position in the wheel house (to be ordered separately)
– Vehicle-specific fitting package
